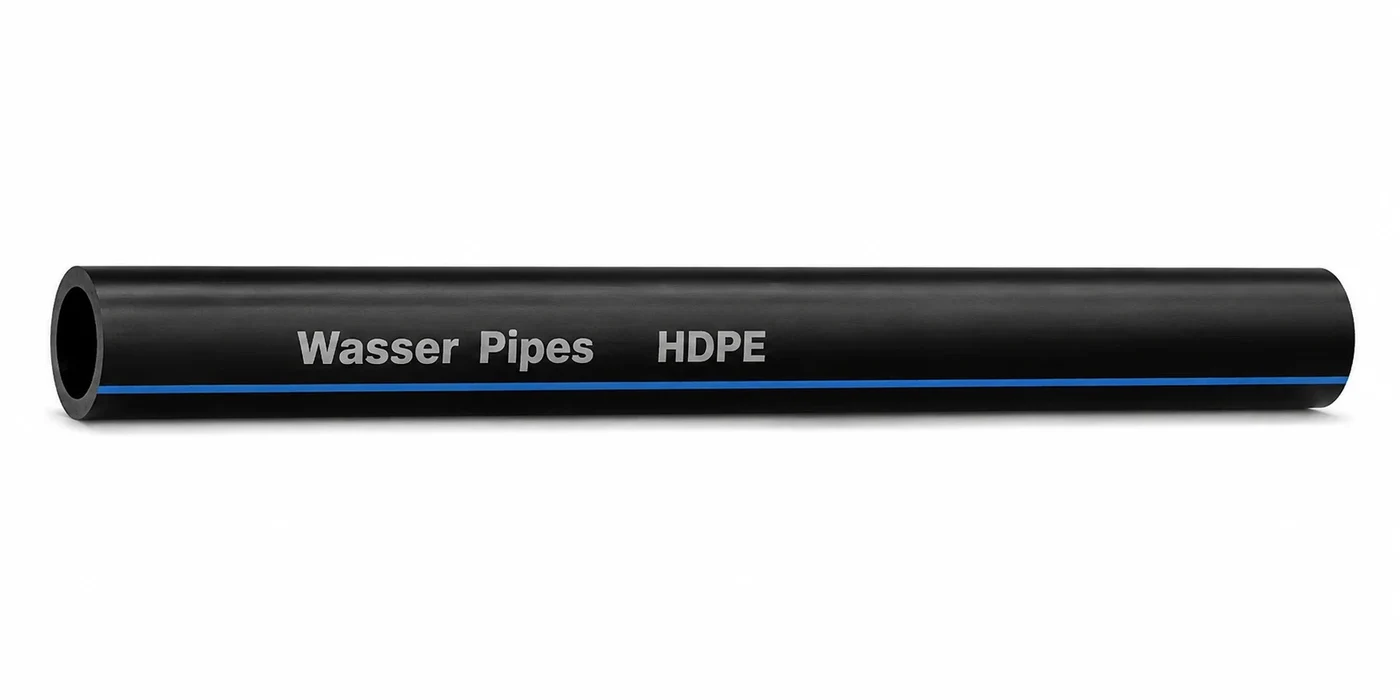

HDPE Pipe
Black high-density polyethylene pipe for water and gas, joined by heat fusion into leak-free, fully restrained joints.
PN6–PN20 · 20–110 mm · 6 m to 100 m lengths · Black
- Water supply mains and reticulation
- Gas
- Farms and irrigation
- Municipal and infrastructure projects
Why this pipe
- Heat-fusion joints are as strong as, or stronger than, the pipe itself
- Produced in 50 m to 100 m lengths, cutting the number of joints
- Light, flexible and lower in construction cost than other pipe materials
- Composition
- 1 layer (HDPE)
- Nominal pressure
- PN6, PN8, PN10, PN12.5, PN16 and PN20
- Length
- Varies (6 to 100 metres)
- Colour
- Black
- Maximum working temperature
- 65°C
- Sizes
- 20 mm to 110 mm (for water and gas)
Catalogue advantages
Construction cost savings
Construction cost of PE pipe can be significantly less than other pipe materials.
Leak-free, fully restrained joints
PE heat fusion joining forms leak-free joints that are as strong as, or stronger than, the pipe itself. For municipal applications, fused joints eliminate the potential leak points.
Construction advantages
PE pipe's combination of light weight, flexibility and leak-free, fully restrained joints permits unique and cost-effective installation methods that are not practical with alternate materials.
Durability
PE pipe installations are cost-effective and have long-term cost advantages due to the pipe's physical properties, leak-free joints, and reduced maintenance costs.
Produced in longer lengths
HDPE pipes can be produced in 50 metre to 100 metre lengths.
Dimensions, pressure ratings and product codes
| Nominal size (mm) | PN6 | PN8 | PN10 | PN12.5 | PN16 | PN20 |
|---|---|---|---|---|---|---|
| 20 | – | – | – | – | 2.0 | 2.3 |
| 25 | – | – | – | 2.0 | 2.3 | 3.0 |
| 32 | – | – | 2.0 | 2.4 | 3.0 | 3.6 |
| 40 | – | 2.0 | 2.4 | 3.0 | 3.7 | 4.5 |
| 50 | 2.0 | 2.4 | 3.0 | 3.7 | 4.6 | 5.6 |
| 63 | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 | 7.1 |
| 75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 | 8.4 |
| 90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 | 13.7 |
| PN | at 25°C – 40°C |
|---|---|
| 6 | 6 bar |
| 8 | 8 bar |
| 10 | 10 bar |
| 12.5 | 12.5 bar |
| 16 | 16 bar |
| 20 | 20 bar |
The maximum working temperature for the pipes is 65°C.
Product codes
PN6
- HDP50,6
- HDP63,6
- HDP75,6
- HDP90,6
- HDP110,6
PN8
- HDP40,8
- HDP50,8
- HDP63,8
- HDP75,8
- HDP90,8
- HDP110,8
PN10
- HDP32,10
- HDP40,10
- HDP50,10
- HDP63,10
- HDP75,10
- HDP90,10
- HDP110,10
PN12.5
- HDP25,12.5
- HDP32,12.5
- HDP40,12.5
- HDP50,12.5
- HDP63,12.5
- HDP75,12.5
- HDP90,12.5
- HDP110,12.5
PN16
- HDP20,16
- HDP25,16
- HDP32,16
- HDP40,16
- HDP50,16
- HDP63,16
- HDP75,16
- HDP90,16
- HDP110,16
PN20
- HDP20,20
- HDP25,20
- HDP32,20
- HDP40,20
- HDP50,20
- HDP63,20
- HDP75,20
- HDP90,20
- HDP110,20
Catalogue pages 7, 15 and 21
