Every Wasser piping system, in one place.

11 piping systems across three material families, with the specifications, dimensions and product codes exactly as published in the Wasser Pipes catalogue.

PP-R5
HDPE1
PVC-U5

Specifications & product codes

Our piping systems

Browse the range

Filter by material family, or scroll the whole catalogue. Every specification shown here is taken from the Wasser Pipes catalogue.

PP-R
PP-R Pipe
The standard single-layer polypropylene random copolymer pipe for hot and cold water plumbing inside buildings.
Main applications
- Cold water plumbing
- Hot water plumbing
- Well water and industrial transfer
- Slippery, bright internal surface for high transmission capacity
- Resistant to corrosion and aggressive environments
- Does not react with water, so it adds no taste
PN8/16 and PN10/20 · OD 20–110 mm · 4 m lengths · Green
Composition
1 layer PP-R
Pressure rating
PN8/16 — 16 bar · PN10/20 — 20 bar
Length
4 metres
Colour
Green pipe
Catalogue advantages
Quality: Raw materials meet the requirement of DIN, TSE and ISO 9002 standards.
Chemical & mechanical endurance: Compared to traditional plastic piping systems, PP-R offers very high resistance against abrasion by hard particles. This is especially important in cases of well water or industrial applications, where the transferred liquids may contain abrasive particles.
Corrosion and chemical resistance: These pipes are resistant to corrosion and aggressive environment; their transmission capacity is high due to smooth inner surface.
Environmental cleanness: Polypropylene does not react with water, therefore, does not add any taste to the water. Since their inner surface is slippery, organic and inorganic sediments and impurities are not observed.
Durability: It can endure the temperature and pressure strain of hot water systems. At the same time it is able to structurally withstand impacts even in cold weather installations without any risk of cracking or breaking, unlike other common types of plastic piping.
Catalogue pages 2, 13 and 19
Full dimensions, pressure tables and product codes
View Product Request a Quote
PP-R
PP-R Composite Pipe
A three-layer PP-R pipe rated to 25 bar, built for hot and cold water transfer, under-floor and central heating.
Main applications
- Hot and cold water transfer in buildings
- Under-floor and central heating systems
- Drinking water
- Industry and agriculture
- Suitable for drinking water and high-temperature service
- Higher bore size and operating pressure than normal PN20 PP-R
- Smooth, non-porous bore means low pressure drop and reduced noise
PN12.5/25 · 25 bar · OD 20–110 mm · 4 m lengths
Composition
3 layers: PP-R & inner layer
Pressure rating
25 bar (PN12.5/25)
Length
4 metres
Colour
White outer and inner layers; maroon inner
Catalogue advantages
No water-hammer & pressure drop: The internal surface of the pipes are smooth, homogeneous, and non-porous. Due to low flow resistance, the pressure drop is less. It has higher flow rates and a wider range of applications with exceptional impact resistance and reduced noise generation.
Long service-life under aggressive working conditions: The quality of the raw material and the high manufacturing technology used to produce them ensure long-life reliable products.
Better flow rate: Compared to normal PN20 PP-R pipes, it has a higher bore size and higher operating pressure at the same operating temperature.
Hygienic, non-toxic & environmentally friendly: All materials used in the production are non-toxic in accordance with current international standards and are completely safe for use with liquid consumables.
Catalogue pages 3, 13 and 19
Full dimensions, pressure tables and product codes
View Product Request a Quote
PP-R
PP-R UV Composite Pipe
A four-layer 25 bar composite pipe with a UV-stabilised black outer layer, for pressure lines that run in the open.
Main applications
- UV-exposed and outdoor pressure lines
- Hot and cold water at high pressure
- Well water and industrial transfer
- UV-resistant outer layer protects the pipe from flaking in sunlight
- Composite layer gives rigidity with memory, so runs lay straighter
- Manufactured as per KS ISO minimum requirements
PN12.5/25 · 25 bar · OD 20–110 mm · 4 m lengths
Composition
4 layers (outer layer mixture of PP-R and UV stabilizer & inner layer)
Pressure rating
25 bar (PN12.5/25)
Length
4 metres
Colour
Outer layer black, second layer white, third layer maroon & inner layer white
Manufactured to
KS ISO minimum requirements
Catalogue advantages
Protected against UV rays: The UV protected layer is comprised of UV resistant materials which protect the pipe from flaking when exposed to sunlight over time.
Rigid with memory: The composite material provides rigidity with memory to the pipes allowing them to be laid straighter.
Chemical & mechanical endurance: They offer very high resistance against abrasion by hard particles. This is especially important in cases of well water or industrial applications, where the transferred liquids may contain abrasive particles.
Corrosion and chemical resistance: These pipes are resistant to corrosion and aggressive environment; their transmission capacity is high due to smooth inner surface.
Durability: It can endure the temperature and pressure strain of hot water systems. At the same time it is able to structurally withstand impacts even in cold weather installations without any risk of cracking or breaking, unlike other common types of plastic piping.
Catalogue pages 4, 14 and 20
Full dimensions, pressure tables and product codes
View Product Request a Quote
PP-R
PP-R UV Protected Pipe
A two-layer PP-R pipe with a UV-stabilised black skin over a green PP-R core, built for drinking water lines exposed to sunlight.
Main applications
- Drinking water supply
- Outdoor and UV-exposed installations
- Hot and cold water plumbing
- Most ideal for carrying drinking water — not subject to contamination
- UV protected layer resists flaking in sunlight over time
- Excellent resistance to acids, oxidizing agents, alkalis, oils and domestic effluents
PN10/20 · 20 bar · OD 20–110 mm · 4 m lengths
Composition
2 layers (outer layer mixture of PP-R & UV stabilizer, inner layer of PP-R)
Pressure rating
20 bar (PN10/20)
Length
4 metres
Colour
Outer layer black, inner layer green
Manufactured to
KS ISO minimum requirements with additional UV protection
Catalogue advantages
Odourless and hygienic: These pipes are most ideal for carrying drinking water as they do not subject to contamination.
Protected against UV rays: The UV protected layer is comprised of UV resistant materials which protect the pipe from flaking when exposed to sunlight over time.
High chemical resistance: Pipes offer excellent resistance to acids, oxidizing agents, alkalis, oils and domestic effluents.
Smooth bore: Pipes have a smooth inside surface and hence better flow characteristics.
Longer lasting: As these pipes are free from weaknesses caused by scale formation, rusting, weathering and chemical action they last for a lifetime.
Installation: The installation methodology and requirement are the same as normal PP-R pipes.
Catalogue pages 5, 14 and 20
Full dimensions, pressure tables and product codes
View Product Request a Quote
PP-R
PP-R Thermal Insulated Pipe
A three-layer PP-R pipe with a thermal insulating middle layer, for hot and cold water runs where heat loss matters.
Main applications
- Hot water distribution
- Cold water distribution
- Well water and industrial transfer
- Better thermal resistivity than standard PP-R pipes
- Resistant to corrosion and aggressive environments
- Slippery inner surface — no organic or inorganic sediment build-up
PN10/20 · 20 bar · OD 20–63 mm · 4 m lengths · White
Composition
3 layers (outer & inner layer of PP-R, thermal insulated middle layer)
Pressure rating
20 bar (PN10/20)
Length
4 metres
Colour
White
Manufactured to
KS ISO minimum requirements
Catalogue advantages
Thermal resistance: Have better thermal resistivity than standard PP-R pipes.
Chemical & mechanical endurance: Very high resistance against abrasion by hard particles. This is especially important in cases of well water or industrial applications, where the transferred liquids may contain abrasive particles.
Corrosion and chemical resistance: These pipes are resistant to corrosion and aggressive environment; their transmission capacity is high due to smooth inner surface.
Environmental cleanness: Polypropylene does not react with water, therefore, does not add any taste to the water. Since their inner surface is slippery, organic and inorganic sediments and impurities are not observed.
Durability: It can endure the temperature and pressure strain of hot water systems. At the same time it is able to structurally withstand impacts even in cold weather installations without any risk of cracking or breaking, unlike other common types of plastic piping.
Catalogue pages 6, 14 and 20
Full dimensions, pressure tables and product codes
View Product Request a Quote
HDPE
HDPE Pipe
Black high-density polyethylene pipe for water and gas, joined by heat fusion into leak-free, fully restrained joints.
Main applications
- Water supply mains and reticulation
- Gas
- Farms and irrigation
- Municipal and infrastructure projects
- Heat-fusion joints are as strong as, or stronger than, the pipe itself
- Produced in 50 m to 100 m lengths, cutting the number of joints
- Light, flexible and lower in construction cost than other pipe materials
PN6–PN20 · 20–110 mm · 6 m to 100 m lengths · Black
Composition
1 layer (HDPE)
Nominal pressure
PN6, PN8, PN10, PN12.5, PN16 and PN20
Length
Varies (6 to 100 metres)
Colour
Black
Maximum working temperature
65°C
Sizes
20 mm to 110 mm (for water and gas)
Catalogue advantages
Construction cost savings: Construction cost of PE pipe can be significantly less than other pipe materials.
Leak-free, fully restrained joints: PE heat fusion joining forms leak-free joints that are as strong as, or stronger than, the pipe itself. For municipal applications, fused joints eliminate the potential leak points.
Construction advantages: PE pipe's combination of light weight, flexibility and leak-free, fully restrained joints permits unique and cost-effective installation methods that are not practical with alternate materials.
Durability: PE pipe installations are cost-effective and have long-term cost advantages due to the pipe's physical properties, leak-free joints, and reduced maintenance costs.
Produced in longer lengths: HDPE pipes can be produced in 50 metre to 100 metre lengths.
Catalogue pages 7, 15 and 21
Full dimensions, pressure tables and product codes
View Product Request a Quote
PVC-U

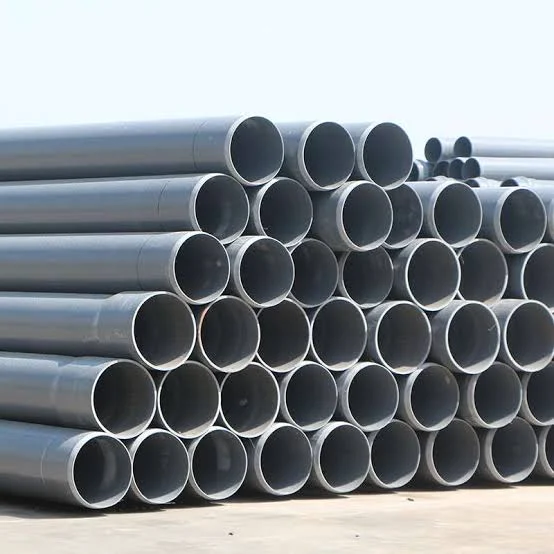

PVC-U Pressure Pipe
Grey unplasticised PVC pressure pipe in 6 metre lengths for pressurised cold water supply and distribution.
Main applications
- Drinking water supply
- Pressurised cold water distribution
- Irrigation and infrastructure mains
- Most ideal for carrying drinking water — not subjected to contamination
- Immune to chemical, electrolytic and galvanic action, so free from corrosion
- Self-extinguishing, which eliminates the need for fire resistant coatings
PN6–PN20 · 40–160 mm · 6 m lengths · Grey
Composition
1 layer (PVC)
Nominal pressure
PN6, PN8, PN10, PN12.5, PN16 and PN20
Length
6 metres
Colour
Grey
Maximum temperature
60°C
Catalogue advantages
Odourless and hygienic: These pipes are most ideal for carrying drinking water as they are not subjected to contamination.
High corrosion resistance: Being immune to chemical, electrolytic and galvanic action these pipes are free from corrosion.
High chemical resistance: Pipes offer excellent resistance to acids, oxidizing agents, alkalis, oils and domestic effluents.
Smooth bore: Pipes have a smooth inside surface and hence better flow characteristics in comparison to conventional drainage pipes.
Self-extinguishing quality: This eliminates the need for fire resistant coatings.
Maintenance free: Corrosion resistance property of the PVC-U pipes eliminates the need for painting or coating.
Catalogue pages 12, 16 and 23
Full dimensions, pressure tables and product codes
View Product Request a Quote
PVC-U
PVC-U Acoustic Pipe
A three-layer white PVC-U pipe with a hollow grid middle layer that cuts drainage noise by more than 6 dB.
Main applications
- Quiet drainage stacks in buildings
- Apartments, hotels and hospitals
- Soil and waste where noise matters
- Reduction in noise levels of more than 6 dB
- Internal vanes reduce vortex and direct the flow
- Hollow grid layout adds structural strength and rigidity
110 mm and 160 mm · 6 m lengths · White
Composition
3 layer: outer and inner layer of PVC & middle hollow grid layer
Length
6 metres
Colour
White
Noise reduction
More than 6 dB
Catalogue advantages
Reduction in noise level: Due to the middle layer, the silent pipes have exceptionally good noise insulating properties which act to reduce the noise generated by transportation of fluid inside the pipe. The reduction in noise levels is more than 6 dB.
Directs flow: The vanes inside the pipe assist in reducing vortex hence directing the flow while giving better flow characteristics.
Easy to install: They are easy to install. In fact, silent pipes do not require any special care or procedure for installation.
Excellent chemical and corrosion resistance: Being non-metallic, this system is completely free from corrosion and offers exceptionally good resistance to a wide range of chemicals.
Quick and efficient removal of waste without leakage: Mirror smooth and restriction free inner surface of pipes ensures superior flow characteristics, thus the pipes are free from problems of clogging and drain choke-up. System is completely leak-proof and designed to maintain high standards of hygiene.
Least maintenance: Once installed the pipes require minimal maintenance.
Catalogue pages 11, 17 and 22
Full dimensions, pressure tables and product codes
View Product Request a Quote
PVC-U
PVC-U SWR Drainage Pipe — Golden Brown
Golden brown soil, waste and rainwater drainage pipe for underground waste and rainwater systems.
Main applications
- Underground waste systems
- Underground rainwater systems
- Below-ground drainage
- Used in underground waste and rainwater systems
- Non-metallic, so completely free from corrosion
- Mirror smooth bore keeps the system free from clogging and drain choke-up
110 mm and 160 mm · 6 m lengths · Golden brown
Composition
1 layer of PVC
Length
6 metres
Colour
Golden brown
Use
Underground waste and rainwater systems
Catalogue advantages
Stronger and longer lasting: This system is highly resilient, tough and durable with high tensile strength and high impact strength. Moreover, it is free from problems caused by scale formation, rusting, weathering and chemical action and hence lasts for a lifetime.
Excellent chemical and corrosion resistance: Being non-metallic, this system is completely free from corrosion and offers exceptionally good resistance to a wide range of chemicals.
Quick and efficient removal of waste without leakage: Mirror smooth and restriction free inner surface of pipes ensures superior flow characteristics, thus the system is free from problems of clogging and drain choke-up. System is completely leak-proof and designed to maintain high standards of hygiene.
Least maintenance: Once installed the S.W.R. drainage system needs minimal maintenance.
Cost effective: The S.W.R. drainage system is more cost effective than any conventional drainage system.
Catalogue pages 8, 17 and 22
Full dimensions, pressure tables and product codes
View Product Request a Quote
PVC-U
PVC-U SWR Drainage Pipe — Grey
Grey soil, waste and rainwater drainage pipe for above ground waste and rainwater systems, from 36 mm to 160 mm.
Main applications
- Above ground waste systems
- Above ground rainwater systems
- Building drainage stacks
- Used in above ground waste and rainwater systems
- The widest SWR size range — 36 mm to 160 mm
- Free from scale formation, rusting, weathering and chemical action
36–160 mm · 6 m lengths · Grey
Composition
1 layer of PVC
Length
6 metres
Colour
Grey
Use
Above ground waste and rainwater systems
Catalogue advantages
Stronger and longer lasting: The pipes are highly resilient, tough and durable with high tensile strength and high impact strength. Moreover, it is free from problems caused by scale formation, rusting, weathering and chemical action and hence lasts for a lifetime.
Excellent chemical and corrosion resistance: Being non-metallic, they are completely free from corrosion and offer exceptionally good resistance to a wide range of chemicals.
Quick and efficient removal of waste without leakage: The smooth and restriction free inner surface of pipes ensures superior flow characteristics, thus the pipe is free from problems of clogging and drain choke-up.
Least maintenance: The drainage pipes require minimal maintenance.
Catalogue pages 9, 17 and 22
Full dimensions, pressure tables and product codes
View Product Request a Quote
PVC-U
PVC-U SWR Drainage Pipe — White
White soil, waste and rainwater drainage pipe rated for both above ground and underground systems.
Main applications
- Above ground drainage
- Underground drainage
- Mixed above and below ground installations
- Used in both above ground and underground systems
- Cannot be manufactured from recycled PVC, so quality stays consistent
- Mirror smooth bore prevents clogging and drain choke-up
36–160 mm · 6 m lengths · White
Composition
1 layer of PVC
Length
6 metres
Colour
White
Use
Both above ground and underground systems
Catalogue advantages
High quality: These pipes cannot be manufactured from recycled PVC plastics hence must always maintain high quality. Any foreign or coloured particle can taint the pipe colour.
Stronger and longer lasting: The pipes are highly resilient, tough and durable with high tensile strength and high impact strength. Moreover, it is free from problems caused by scale formation, rusting, weathering and chemical action and hence lasts for a lifetime.
Excellent chemical and corrosion resistance: Being non-metallic, they are completely free from corrosion and offer exceptionally good resistance to a wide range of chemicals.
Quick and efficient removal of waste without leakage: Mirror smooth and restriction free inner surface of pipes ensures superior flow characteristics, thus the pipe is free from problems of clogging and drain choke-up.
Least maintenance: The drainage pipes require minimal maintenance.
Catalogue pages 10 and 18
Full dimensions, pressure tables and product codes
View Product Request a Quote

Swipe or drag to browse the range

Technical information

Specifications, dimensions and product codes

Pipe composition, colour, length, outside and inside diameter, wall thickness, pressure rating and temperature guidance for every Wasser system — exactly as published in the catalogue.

Composition: 1 layer PP-R
Pressure rating: PN8/16 — 16 bar · PN10/20 — 20 bar
Length: 4 metres
Colour: Green pipe

PP-R Pipe PN8/16 — dimensions

PP-R Pipe PN8/16 — dimensions
Dimension	20	25	32	40	50	63	75	90	110
OD (mm)	20	25	32	40	50	63	75	90	110
ID (mm)	14.4	18.0	23.2	29.0	36.2	45.8	54.4	65.4	79.8
S (mm)	2.80	3.50	4.40	5.50	6.90	8.60	10.3	12.3	15.1

OD — outer diameter · ID — inner diameter · S — wall thickness.

PP-R Pipe PN10/20 — dimensions

PP-R Pipe PN10/20 — dimensions
Dimension	20	25	32	40	50	63	75	90	110
OD (mm)	20	25	32	40	50	63	75	90	110
ID (mm)	13.2	16.6	21.2	26.6	33.4	42.0	50.0	60.0	73.4
S (mm)	3.40	4.20	5.40	6.70	8.30	10.5	12.5	15.0	18.3

Recommended maximum operating pressure by temperature

Recommended maximum operating pressure by temperature
PN	10°C – 30°C	30°C – 65°C	80°C – 90°C
8/16	16 bar	15 bar	4.8 bar
10/20	20 bar	18 bar	5.5 bar

As temperature increases, the maximum working pressure of the pipes should be reduced.

Product codes

PN8/16

PPR20,8
PPR25,8
PPR32,8
PPR40,8
PPR50,8
PPR63,8
PPR75,8
PPR90,8
PPR110,8

PN10/20

PPR20,10
PPR25,10
PPR32,10
PPR40,10
PPR50,10
PPR63,10
PPR75,10
PPR90,10
PPR110,10

Source: Catalogue pages 2, 13 and 19 of the Wasser Pipes catalogue.

Composition: 3 layers: PP-R & inner layer
Pressure rating: 25 bar (PN12.5/25)
Length: 4 metres
Colour: White outer and inner layers; maroon inner

PP-R Composite Pipe PN12.5/25 — dimensions

PP-R Composite Pipe PN12.5/25 — dimensions
Dimension	20	25	32	40	50	63	75	90	110
OD (mm)	20	25	32	40	50	63	75	90	110
ID (mm)	14.4	18.0	23.2	29.0	36.2	45.8	54.4	65.4	79.8
S (mm)	2.80	3.50	4.40	5.50	6.90	8.60	10.3	12.3	15.1

Recommended maximum operating pressure by temperature

Recommended maximum operating pressure by temperature
PN	10°C – 30°C	30°C – 65°C	80°C – 90°C
12.5/25	25 bar	20 bar	8 bar

Product codes

PN12.5/25

PPC20,12.5
PPC25,12.5
PPC32,12.5
PPC40,12.5
PPC50,12.5
PPC63,12.5
PPC75,12.5
PPC90,12.5
PPC110,12.5

Source: Catalogue pages 3, 13 and 19 of the Wasser Pipes catalogue.

Composition: 4 layers (outer layer mixture of PP-R and UV stabilizer & inner layer)
Pressure rating: 25 bar (PN12.5/25)
Length: 4 metres
Colour: Outer layer black, second layer white, third layer maroon & inner layer white
Manufactured to: KS ISO minimum requirements

PP-R UV Composite Pipe PN12.5/25 — dimensions

PP-R UV Composite Pipe PN12.5/25 — dimensions
Dimension	20	25	32	40	50	63	75	90	110
OD (mm)	20	25	32	40	50	63	75	90	110
ID (mm)	14.4	18.0	23.2	29.0	36.2	45.8	54.4	65.4	79.8
S (mm)	2.80	3.50	4.40	5.50	6.90	8.60	10.3	12.3	15.1

Recommended maximum operating pressure by temperature

Recommended maximum operating pressure by temperature
PN	10°C – 30°C	30°C – 65°C	80°C – 90°C
12.5/25	25 bar	20 bar	8 bar

Product codes

PN12.5/25

PPCU20
PPCU25
PPCU32
PPCU40
PPCU50
PPCU63
PPCU75
PPCU90
PPCU110

Source: Catalogue pages 4, 14 and 20 of the Wasser Pipes catalogue.

Composition: 2 layers (outer layer mixture of PP-R & UV stabilizer, inner layer of PP-R)
Pressure rating: 20 bar (PN10/20)
Length: 4 metres
Colour: Outer layer black, inner layer green
Manufactured to: KS ISO minimum requirements with additional UV protection

PP-R UV Protected Pipe PN10/20 — dimensions

PP-R UV Protected Pipe PN10/20 — dimensions
Dimension	20	25	32	40	50	63	75	90	110
OD (mm)	20	25	32	40	50	63	75	90	110
ID (mm)	13.2	16.6	21.2	26.6	33.4	42.0	50.0	60.0	73.4
S (mm)	3.40	4.20	5.40	6.70	8.30	10.5	12.5	15.0	18.3

Recommended maximum operating pressure by temperature

Recommended maximum operating pressure by temperature
PN	10°C – 30°C	30°C – 65°C	80°C – 90°C
8/16	16 bar	15 bar	4.8 bar
10/20	20 bar	18 bar	5.5 bar

Product codes

PN10/20

PPRU20
PPRU25
PPRU32
PPRU40
PPRU50
PPRU63
PPRU75
PPRU90
PPRU110

Source: Catalogue pages 5, 14 and 20 of the Wasser Pipes catalogue.

Composition: 3 layers (outer & inner layer of PP-R, thermal insulated middle layer)
Pressure rating: 20 bar (PN10/20)
Length: 4 metres
Colour: White
Manufactured to: KS ISO minimum requirements

PP-R Thermal Insulated Pipe PN10/20 — dimensions

PP-R Thermal Insulated Pipe PN10/20 — dimensions
Dimension	20	25	32	40	50	63
OD (mm)	20	25	32	40	50	63
ID (mm)	12.8	16.0	20.6	25.8	32.4	40.8
S (mm)	3.60	4.50	5.70	7.10	8.80	11.1

The catalogue publishes dimensions for 20–63 mm, while product codes are listed up to 110 mm. Confirm availability of sizes above 63 mm with Astral Industries Limited.

Recommended maximum operating pressure by temperature

Recommended maximum operating pressure by temperature
PN	10°C – 30°C	30°C – 65°C	80°C – 90°C
10/20	20 bar	18 bar	5.5 bar

Product codes

PN10/20

PPT20,10
PPT25,10
PPT32,10
PPT40,10
PPT50,10
PPT63,10
PPT75,10
PPT90,10
PPT110,10

Source: Catalogue pages 6, 14 and 20 of the Wasser Pipes catalogue.

Figures are reproduced from the Wasser Pipes catalogue published by Astral Industries Limited. As temperature rises, maximum working pressure falls — check the temperature tables above for the class you intend to use. Confirm final sizing, pressure class and availability with a qualified plumber or engineer and with Astral Industries Limited before ordering.

Request a quote

Tell us about the project

Send the details and the Astral Industries Limited team will come back with a quotation and the right specification for the work.

Prefer to review the specifications first?

Every dimension table, pressure rating and product code is published on the product range page.

Full name *

Phone number *

Email address *

Location or county *

Customer or project type *

Product of interest *

Project description *

I agree that Astral Industries Limited may contact me about this enquiry, and I have read the privacy policy. *

Fields marked * are required. Your details are used only to answer this enquiry.

Every Wasser piping system, in one place.

Browse the range

PP-R Pipe

Main applications

Catalogue advantages

PP-R Composite Pipe

Main applications

Catalogue advantages

PP-R UV Composite Pipe

Main applications

Catalogue advantages

PP-R UV Protected Pipe

Main applications

Catalogue advantages

PP-R Thermal Insulated Pipe

Main applications

Catalogue advantages

HDPE Pipe

Main applications

Catalogue advantages

PVC-U Pressure Pipe

Main applications

Catalogue advantages

PVC-U Acoustic Pipe

Main applications

Catalogue advantages

PVC-U SWR Drainage Pipe — Golden Brown

Main applications

Catalogue advantages

PVC-U SWR Drainage Pipe — Grey

Main applications

Catalogue advantages

PVC-U SWR Drainage Pipe — White

Main applications

Catalogue advantages

Specifications, dimensions and product codes

PP-R PipePN8/16 and PN10/20 · OD 20–110 mm · 4 m lengths · Green

PP-R Pipe PN8/16 — dimensions

PP-R Pipe PN10/20 — dimensions

Recommended maximum operating pressure by temperature

Product codes

PP-R Composite PipePN12.5/25 · 25 bar · OD 20–110 mm · 4 m lengths

PP-R Composite Pipe PN12.5/25 — dimensions

Recommended maximum operating pressure by temperature

Product codes

PP-R UV Composite PipePN12.5/25 · 25 bar · OD 20–110 mm · 4 m lengths

PP-R UV Composite Pipe PN12.5/25 — dimensions

Recommended maximum operating pressure by temperature

Product codes

PP-R UV Protected PipePN10/20 · 20 bar · OD 20–110 mm · 4 m lengths

PP-R UV Protected Pipe PN10/20 — dimensions

Recommended maximum operating pressure by temperature

Product codes

PP-R Thermal Insulated PipePN10/20 · 20 bar · OD 20–63 mm · 4 m lengths · White

PP-R Thermal Insulated Pipe PN10/20 — dimensions

Recommended maximum operating pressure by temperature

Product codes

Tell us about the project

Prefer to review the specifications first?
