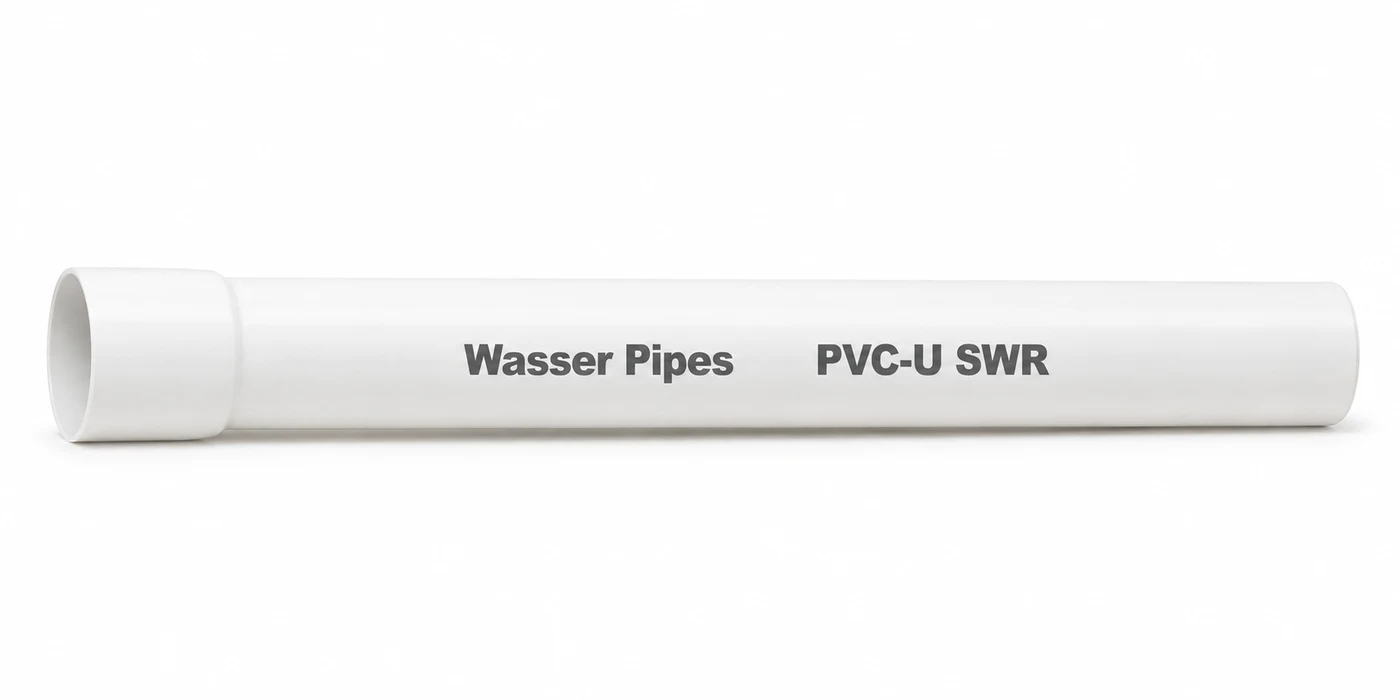

PVC-U SWR Drainage Pipe — White
White soil, waste and rainwater drainage pipe rated for both above ground and underground systems.
36–160 mm · 6 m lengths · White
- Above ground drainage
- Underground drainage
- Mixed above and below ground installations
Why this pipe
- Used in both above ground and underground systems
- Cannot be manufactured from recycled PVC, so quality stays consistent
- Mirror smooth bore prevents clogging and drain choke-up
- Composition
- 1 layer of PVC
- Length
- 6 metres
- Colour
- White
- Use
- Both above ground and underground systems
Catalogue advantages
High quality
These pipes cannot be manufactured from recycled PVC plastics hence must always maintain high quality. Any foreign or coloured particle can taint the pipe colour.
Stronger and longer lasting
The pipes are highly resilient, tough and durable with high tensile strength and high impact strength. Moreover, it is free from problems caused by scale formation, rusting, weathering and chemical action and hence lasts for a lifetime.
Excellent chemical and corrosion resistance
Being non-metallic, they are completely free from corrosion and offer exceptionally good resistance to a wide range of chemicals.
Quick and efficient removal of waste without leakage
Mirror smooth and restriction free inner surface of pipes ensures superior flow characteristics, thus the pipe is free from problems of clogging and drain choke-up.
Least maintenance
The drainage pipes require minimal maintenance.
Dimensions, pressure ratings and product codes
| Dimension | 36 | 43 | 56 | 82 | 110 | 160 |
|---|---|---|---|---|---|---|
| OD (mm) | 36 | 43 | 56 | 82 | 110 | 160 |
| ID (mm) | 30 | 37 | 50 | 76 | 103.6 | 153.6 |
| S (mm) | 3 | 3 | 3 | 3 | 3.2 | 3.2 |
Catalogue pages 10 and 18
